PD-22
PIPE BURSTING

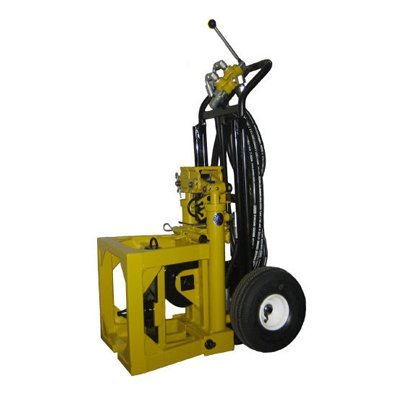

PD-22 – Service Line Splitting Machine
The Pow-R Mole model PD-22 pipe bursting machine is a fast and efficient pipe replacement system offering a cost-effective alternative to open trench. This machine features a (12") stroke. Its unique non-slip, cylinder-activated jaws are designed to prevent cable damage. The PD-22 develops 14,000 lbs of pulling force at a rate of six feet per minute. The jaw system pulls a 3/8" pre-stretched swedged cable. This system is capable of splitting plastic, lead and copper pipes 3/4 to 2 inches in most compressible soils.
Specifications
Length: 18"
Width: 14"
Height: 25"
Weight Total: 145 lbs
Pull Force: 14,000 lbs
Working Pressure: 2350 PSI
Stroke: 12"
Capable of Splitting: 3/4" - 2" Pipe
