REAMERS
HORIZONTAL DIRECTIONAL DRILLING ACCESSORIES
Railhead Reamers – Dirt Reaming Products
Railhead Reamers

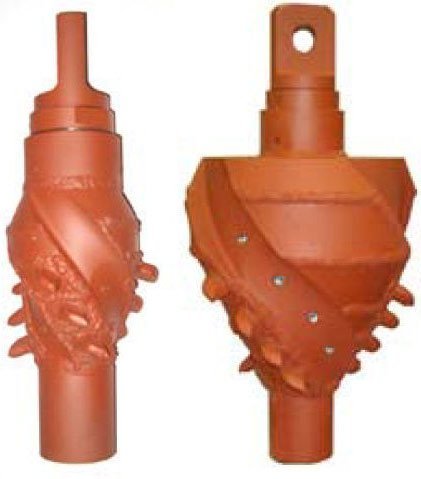

Solid Body Fluted Reamers
Machined from tool steel and heat treated for strength and durability, these reamers are available with an API R eg box on the front and several options on the back. These options include a built-in 20K, 30K, 45K HDD swivel or draw bar. Now available with a pin back to allow for trailing rods or use as a centering wheel with the flow-through capabilities to attach a second reamer in tandem. The API box front will accept any API pin crossover to your thread. Made with shark teeth or conical carbide teeth.

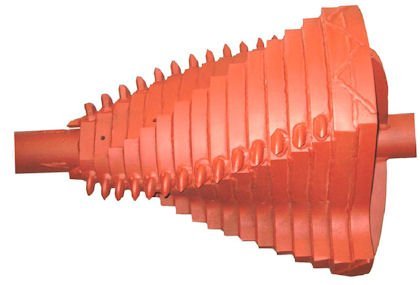

Stacked Plate Reamers
These stacked plate backreamers feature a slow taper design and deep spiral fluting for smooth cutting and maximum mixing action. They are available with a built-in 30K or 45K swivel, drawbar, pin or box rear connection. The API box fronts will accept any API pin crossover to your drill thread.
For cobble, sandstones, shales, soft limestone, caliche and gravel.

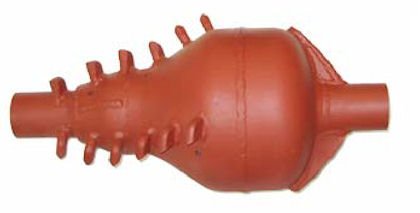

Tapered Barrel Reamers
Tapered barrel reamers feature shark teeth carbide cutters in a spiral pattern, and a “packer” barrel rear for stability. Reamers have API REG box fronts and are available with built-in swivel, drawbar, pin or box rear connection. The API REG box fronts will accept any API pin crossover needed to attach to your drill.
For cobbles, shales, river rock and hardpan.
Winged Reamers
Fabricated from heat-treated alloy steel for strength and durability, these winged reamers are available with a built-in 20K, 30K or 45K swivel, drawbar, pin or box rear connection. The API REG box fronts will accept any API pin cross-over needed to attach to your drill.
For sand with cobbles, sandstone and hardpan.

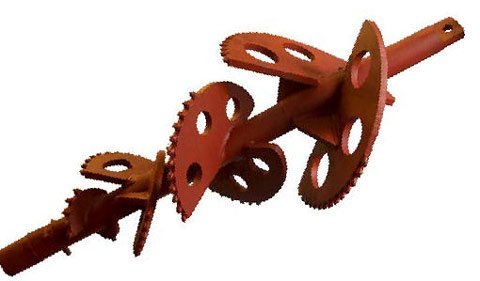

Clay Reamers
Fabricated from heat-treated alloy steel for strength and durability, these clay reamers are available with a built-in 20K, 30K or 45K swivel or drawbar, pin or rear connection. The API REG box fronts will accept any API pin crossover needed to attach to your drill.
For aggressive cutting, mixing and pumping in sticky clay. Also, an excellent choice for shale and sandstone.
Fly Cutter Reamers
Fabricated from heat-treated alloy steel for strength and durability, the Tapered Wing Fly Cutter features three long tapered wings, offset cutters, multiple fluid ports, three packing and stabilizing ring segments, and is available with a drawbar, pin or box rear connection. The API REG box fronts will accept any API pin crossover needed to attach to your drill.
For consolidated loams, clays and semi-compacted soils.

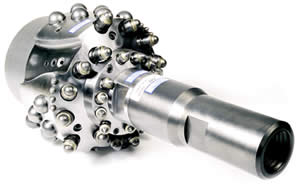

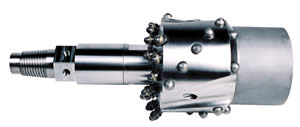

The EXTReam™ Reamers – Rock Reaming Products
The EXTReam™ is a true rock reamer that is designed to stand up to the kind of hard rock and rocky conditions that tear up other reamers and hole openers.
StraightLine Reamers
StraightLine specializes in the design, development, and manufacturing of equipment for the horizontal directional drilling industry. Regardless of the brand of drill, size of drill or the ground conditions, we are committed to making your HDD operation the very best it can be.
Cyclone Reamers
The undisputed champion in sticky clay.
Radial Flow Reamers
Extremely versatile design, providing excellent performance in sands and loams to light shale and sandstone.
Fly-Cutter Reamers
Recommended for use in sand, loam, clays, and light aggregate conditions.
Steep Taper Fly-Cutter Reamers
Recommended for use in loams, light aggregates, shale and limestone.
Winged Reamers
Recommended for use in non-compactable conditions including sands, aggregates, shale, and limestone.
Maxi Fly-Cutter Reamers
Recommended for use in a variety of conditions including sands, aggregates, shale and limestone.
Hurricane Reamers
Recommended for use in sands, clays, and light aggregates.
Rhino Reamers
Recommended for use in compacted grounds and light aggregates.
Barrel Reamers
Commonly used in bores where the formation types are relatively soft, the barrel acts as a stabilizer when pulling larger reamers, fly cutters, or hole openers.
Maxi Barrel Reamers
Reamers to fit your largest drilling rigs available.
Tri-Action Reamers
Works well in a variety of soil conditions.
All-Terrain Reamers
Designed for varying conditions from compactable soils to aggregate conditions and rock.
Hole Openers
StraightLine® Hole Openers get you through the toughest conditions
Custom Reamers
You dream it, we can build it!

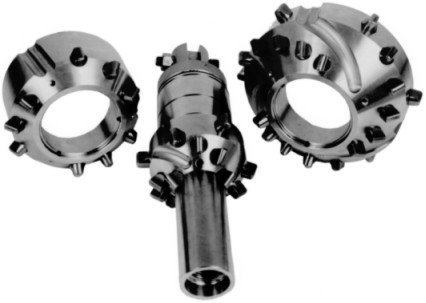

Geological Boring - Reamers
Expandable with removable Expansion Rings
6" Backreamer Core expandable to 12"
8" Backreamer Core expandable to 30"
- Built-in 30,000-pound capacity swivel with ball thrust bearings and metal-to-metal Caterpillar type seals for long maintenance-free life
- Fluid flow adjustable both forward and rear
- Heat treated tool steel body
- Solid tungsten carbide cutting edges
| Part Number | Core Diameter (Inches) | Treads |
|---|---|---|
| D302 | 6.0" | 2 API I.F. Box |
| D168 | 8.0" | 2 - 3/8 API Reg Box |
| D222 | 8.0" | 3 - 1/2 API Reg Box |
| Part Number | Expandable Ring Diameter (Inches) |
|---|---|
| D299 | Expands 6" Core to 8" Diameter |
| D300 | Expands 6" Core to 10" Diameter |
| D301 | Expands 6" Core to 12" Diameter |
| D180 | Expands 8" Core to 10" Diameter |
| D181 | Expands 8" Core to 12" Diameter |
| D182 | Expands 8" Core to 14" Diameter |
| D183 | Expands 8" Core to 16" Diameter |
| D184 | Expands 8" Core to 18" Diameter |
HDD Drill Pipe (Vermeer & Ditch Witch Compatible)
Vermeer
Vermeer®-Compatible Rod Specifications
- Fully compatible with Vermeer® handling equipment
- All rods are heat treated to a minimum 135,000 lb yield strength for the ultimate in fatigue resistance
Ditch Witch
Jet Trac®-Compatible Rod Specifications
- Fully compatible with Jet Trac® handling equipment
- Many popular sizes available in both forged-end and inertia welded rods
Other Rigs
- Premier carries rods for many out-of-production rigs. Ask us about our Maxi-rig Range 2 product line.
- Many popular sizes available in both forged-end and inertia welded rods
- All rods are heat treated to a minimum 135,000 lb yield strength for the ultimate in fatigue resistance
