HDD Break Out Tongs

StraightLine

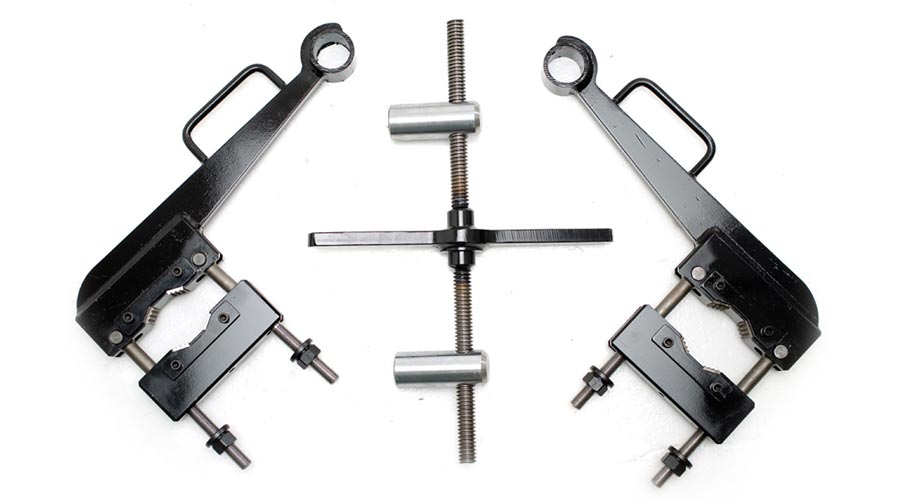

StraightLine's Portable Breakout Wrench Kit provides a safe and reliable method of breaking torqued joints. The unit is compact in design making it easy to handle in and out of tight spots, and with each half weighing in at just over 35 pounds, the kit is easily maneuvered into position. This kit is designed for use with tool outer diameters of 3" through 5-1/4".

breakout-tongs-straightline-big-900x500

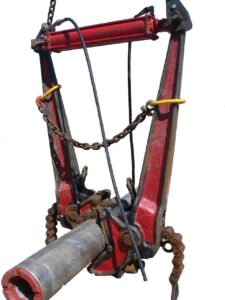

Inrock
A very safe, hydraulic or electric powered, portable make-up/ break-out tong set. Quick and easy hookup to handle your toughest connections with ease, control, and most importantly, safety. Contractors keep their crews safe with Safety Tongs!

General Specifications:

  • The ultimate in safety and control to makeup or breakout your toughest connections.
  • Maximum torque adjustment is hydraulically controlled
  • Fast and easy hook up (for easiest operation use back hoe or lifting machine)
  • Loosen or tighten pipe of the same or different diameters
  • Pump options include:
    • hydraulic hand pump
    • 12 V DC electric pump
    • AC electric pump
    • auxiliary hydraulic control panel
  • 20 foot hydraulic hoses

Note: This application requires special modifications and should not be attempted with standard tongs.

Size OD Range
2.6 K | 1 - 5"
7.5 K | 2 1/4" - 4 7/8"
15 K | 3 1/4" - 5 1/4"
50 K | 4" - 8"
90 K | 4" - 12"
120 K | 6" - 9 1/4"
